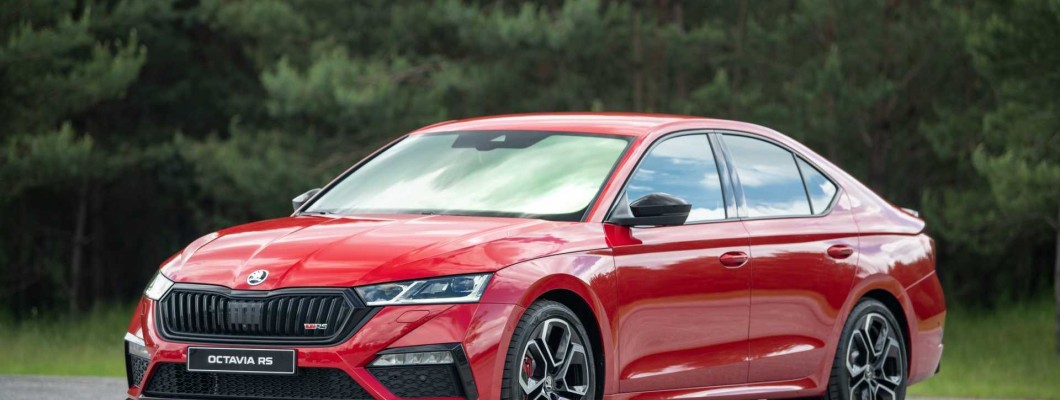

Skoda Octavia Front Bumper Removal Guide (2020–2024 Mk4/NX)

Removing the Skoda Octavia front bumper on a 2020–2024 Mk4/NX car is usually a tidy DIY job if you approach it in the right order. The important part is not just getting the bumper off, but making sure the replacement cover, lower grilles, parking sensors, washer cut-outs and trim-specific pieces actually match your SE or vRS front end before refit.


Browse Skoda Octavia replacement parts


Vehicle-specific fitment snapshot

  • Generation / model code: Skoda Octavia Mk4 / Typ NX.
  • Year split that matters: 2020 to early-2024 cars use the original Mk4 front end; refreshed 2024 cars brought revised bumpers, grille details and updated headlamp signatures.
  • Trim caveat: SE and vRS do not share all lower grille, outer trim and bumper insert parts, even where the basic shell mounting pattern is similar.
  • Sensor / washer / ADAS caveat: PDC hole count, camera or radar provision, and headlamp washer cut-outs must match the replacement bumper before paint.
  • Body style caveat: Liftback and Estate generally follow the same front-end logic within the same bumper family, but part-number and VIN checks still matter.


Why the basic fit and removal is usually simple

The Skoda Octavia bumper removal process on the Mk4 is straightforward because the bumper cover is still fixed in the usual modern VAG pattern: upper fixings by the slam panel, wheel arch liner fasteners, lower undertray screws, and side guide retainers at the wing edges. There is no major structural work involved when you are doing a like-for-like removal.

That means a Skoda Octavia front bumper can normally be removed with common workshop tools and a careful hand around the corner clips. The bumper shell itself is not the difficult part. The real fitment issues appear when trims, grilles, sensors, outer trims or refreshed 2024 parts are mixed casually.


Where the differences hide

This is where tidy bumper jobs go right or wrong. If you are buying front-end styling parts, treat the bumper as a system rather than a painted skin on its own.

  • Centre grille and lower grille sections: SE and vRS front-end styling differs, and the refreshed 2024 look adds another layer of non-interchangeable detail.
  • Outer lower trims and fog-light-surround style sections: even when there is no traditional front fog lamp, the corner trim shapes and finishes are trim-specific.
  • Bumper guide / retainer shape: worn or cracked side retainers are a common reason the bumper sits proud at the wing after refit.
  • Undertray join: the lower edge and air-guide interface can vary slightly by trim and bumper style.
  • Sensor openings: PDC, camera and ADAS-related apertures must match exactly if you want the electronics to sit correctly and avoid warning lights.
  • Washer jet cut-outs: if your car has headlamp washers, the replacement bumper must be drilled and trimmed for the same setup.


Model year and trim checks that matter

  • Stay in the correct generation: this guide is for Mk4 / Typ NX Octavia models, not the earlier 5E/Mk3 car.
  • Treat 2024 as a split year: some cars are still original Mk4 front end, while refreshed 2024 cars use revised bumpers and grille details.
  • SE to vRS swaps need more than a bumper skin: the shell may share its core mounting logic, but the lower grilles, outer trims, ducting and finishers usually need to match the vRS setup.
  • Check liftback versus Estate by part number: the front-end removal steps are similar, but always confirm compatibility by VIN or original part number label.
  • Do not buy by colour alone: match trim, year split, sensor layout, washer provision and refresh state before thinking about paint condition.


Electronics and lighting considerations

Modern Octavia front ends carry more hardware than older cars, so a proper Skoda Octavia front bumper removal guide has to treat the electrical side as part of the job, not an afterthought.

  • Parking sensors: usually reusable if the sensor count, hole layout and holder type match the replacement bumper.
  • Sensor holders and bumper clips: cracked holders and tired clips are common after previous repairs, so inspect them before transfer.
  • ADAS hardware: if your car uses front-facing assistance hardware behind the grille or bumper area, avoid bending brackets or forcing trims into place.
  • Lighting relationship: refreshed 2024 bumpers sit against revised headlamp graphics and detailing, so the pre-facelift / facelift split matters more than shape alone suggests.
  • Headlamp washers: disconnect the hose carefully and be ready for washer fluid loss if fitted.


What usually transfers

Component Reusable Notes
Parking sensors (PDC) Usually yes Reuse only if the replacement bumper has the same sensor count and matching holders.
Sensor wiring loom Usually yes Inspect every clip point and connector lock before refit.
Centre grille Sometimes Trim-specific and refresh-specific; do not assume SE and vRS pieces interchange.
Lower grilles / outer trims Not usually across trims These are where most visible fitment differences hide.
Headlamp washer jets and caps Yes, if equipped The bumper must have the same washer provision and correct cut-outs.
Absorber foam Usually yes Reuse only if undamaged and correctly seated.
Side guides / retainers Sometimes Replace if cracked, loose or if the old bumper had poor corner alignment.
Undertray front edge / lower air guides Sometimes Check trim-specific lower ducting before final assembly.
Tow-eye cover Only with matching bumper Usually bumper-style and paint-specific.

Building the right parts and tools list

Parts worth having ready

  • Correct Skoda Octavia front bumper cover for Mk4 / NX year split and trim
  • Matching centre grille and lower grille inserts if the original bumper is damaged or trim is changing
  • Replacement bumper clips, push rivets and a few spare Torx fixings
  • Side retainers if the old guides are cracked or loose
  • Sensor holders, trim bezels or washer caps if the replacement bumper is supplied bare
  • Masking tape for wing and headlamp edge protection during trial fit

Tools

  • T25 and T30 Torx bits
  • 1/4 inch ratchet with extension
  • Trim removal tools
  • Small flat screwdriver
  • Socket set for liner and lower fasteners where fitted
  • Jack and axle stands or ramps
  • Soft blanket or foam mat for the bumper once removed
  • Magnetic tray for screws and bumper clips


Step-by-step: remove the Skoda Octavia front bumper

Step 1 — Prepare the car and protect the paint

Park on level ground, switch the ignition off and remove the key. Turn the steering to full lock for access to the wheel arch liner screws, or remove the front wheels if you want maximum room. Apply masking tape to the wing edges and headlamp corners before the bumper starts moving.

Step 2 — Remove the upper slam panel fixings

Open the bonnet and remove any upper trim cover or plastic slam panel cover that blocks the top edge of the bumper. Undo the upper Torx screws along the bumper’s top edge and lay them out in order for refit.

Step 3 — Free the wheel arch liner sections

At each front wheel arch, remove the screws and clips securing the forward edge of the liner. Pull the liner back just enough to expose the bumper-to-wing fixing and the side retainer area. This is the point where a hidden fastener is often overlooked.

Step 4 — Undo the lower undertray and bumper fixings

Move underneath the nose and remove the lower undertray screws and bumper clips running along the bottom edge. If lower air guides or trim panels overlap the bumper lip, free them now so the bumper can move forward without bending tabs.

Step 5 — Release the bumper corners from the side guides

Support one corner of the bumper with your hand, then pull outward gently at the wing edge and forward at the same time. The bumper corner needs to slide out of the side retainer rather than being dragged straight off. Repeat on the other side and do not rush the clips.

Step 6 — Pull the bumper forward and disconnect wiring

Ease the bumper forward only a short distance at first. Disconnect the parking sensor loom, any lighting or ancillary connectors, and any washer hose before the bumper is fully free. If you have ADAS-related hardware near the grille area, avoid stressing the wiring or mounting brackets.

Step 7 — Remove the bumper and transfer reusable parts

With a helper if possible, carry the bumper clear of the car and place it face-up on a blanket. Transfer any reusable sensors, washer pieces, brackets, trims and absorber foam to the replacement bumper only after checking that the new shell actually matches the old setup.

Step 8 — Trial-fit before final tightening

If you are fitting a replacement bumper, build as much of the trim and sensor package as possible before offering it up to the car. A dry trial fit is worth doing before paint if you are moving between SE and vRS trim families or buying used parts from mixed sources.


Reinstallation instructions

  1. Reconnect all wiring and washer hoses before pushing the bumper fully home.
  2. Seat both corners into the bumper guide / retainer evenly rather than locking one side fully before the other.
  3. Install the top screws loosely first, then the wheel arch liner fasteners, then the lower undertray screws.
  4. Check the bonnet line, headlamp clearance and wing gaps before tightening fully.
  5. Refit any slam panel covers, arch liner screws and lower trims once the panel gaps are even.
  6. Test parking sensors, any front camera or assist-system warnings, and the washer system before road use.

Common pitfalls and how to avoid them

  • Buying the wrong 2024 bumper: refreshed 2024 cars need extra care because the front-end detailing changed.
  • Assuming vRS trims clip straight onto an SE shell: they often do not without the matching lower grilles, outer trims and related pieces.
  • Missing the hidden side fastener: always pull the wheel arch liner back properly before trying to release the corner.
  • Snapping bumper clips: pull outward and forward in the retainer direction rather than twisting the corner downwards.
  • Reusing damaged retainers: poor side guides are a major cause of popped corners and uneven gaps after refit.
  • Ignoring ADAS alignment: if assist-system hardware or brackets are disturbed, do not assume everything is still perfectly aligned.

If you want more installation guides before ordering paint or parts, it is worth comparing similar trim-specific bumper jobs first.


Costs, time and effort

  • DIY bumper removal only: roughly 45 to 90 minutes depending on fixings, trim level and how clean the car is underneath.
  • Removal, parts transfer and refit: usually 1.5 to 3 hours for a careful home job.
  • Used genuine standard Mk4 front bumper: typically around £220 to £300 for a bare or lightly trimmed used OEM bumper.
  • Refreshed 2024-on front bumper or fuller trim package: budget can climb quickly once grilles, trims, sensor holders and paint are included.
  • Paintwork: around £250 to £500 in the UK depending on colour, prep and whether blending is needed.
  • Bodyshop labour: around 2 to 4 hours for remove and refit, plus paint and any calibration work where required.

DIY difficulty: moderate. The Skoda Octavia front bumper itself is not unusually difficult to remove, but the job becomes more expensive and frustrating when the trim-specific parts list is guessed instead of checked.


FAQ

Will a vRS front bumper fit an SE Skoda Octavia?

Often within the same Mk4 generation the core mounting pattern is workable, but you usually need the matching vRS lower grilles, outer trims, brackets and supporting plastics for a clean result.

Is 2024 a split year for Octavia front bumpers?

Yes. Some 2024 cars are still the original Mk4 front end, while refreshed 2024 cars have revised bumpers, grille details and updated lighting signatures. Match by VIN, build date and part number rather than registration alone.

Can I reuse my parking sensors?

Usually yes, provided the replacement bumper has the same hole layout and compatible holders so the sensors sit at the correct angle.

Do I need calibration after bumper removal?

If ADAS-related hardware, brackets or sensor positions have been disturbed, a check is sensible before the car goes back into normal use.


Final thoughts

A Skoda Octavia bumper removal is usually a manageable DIY task when you treat it as an organised strip-and-refit job rather than a quick pull-off exercise. Match the year split, trim family, sensor layout and washer provision first, then the actual removal becomes the easy part.
